Ansul Micro Switch DPDT 423879

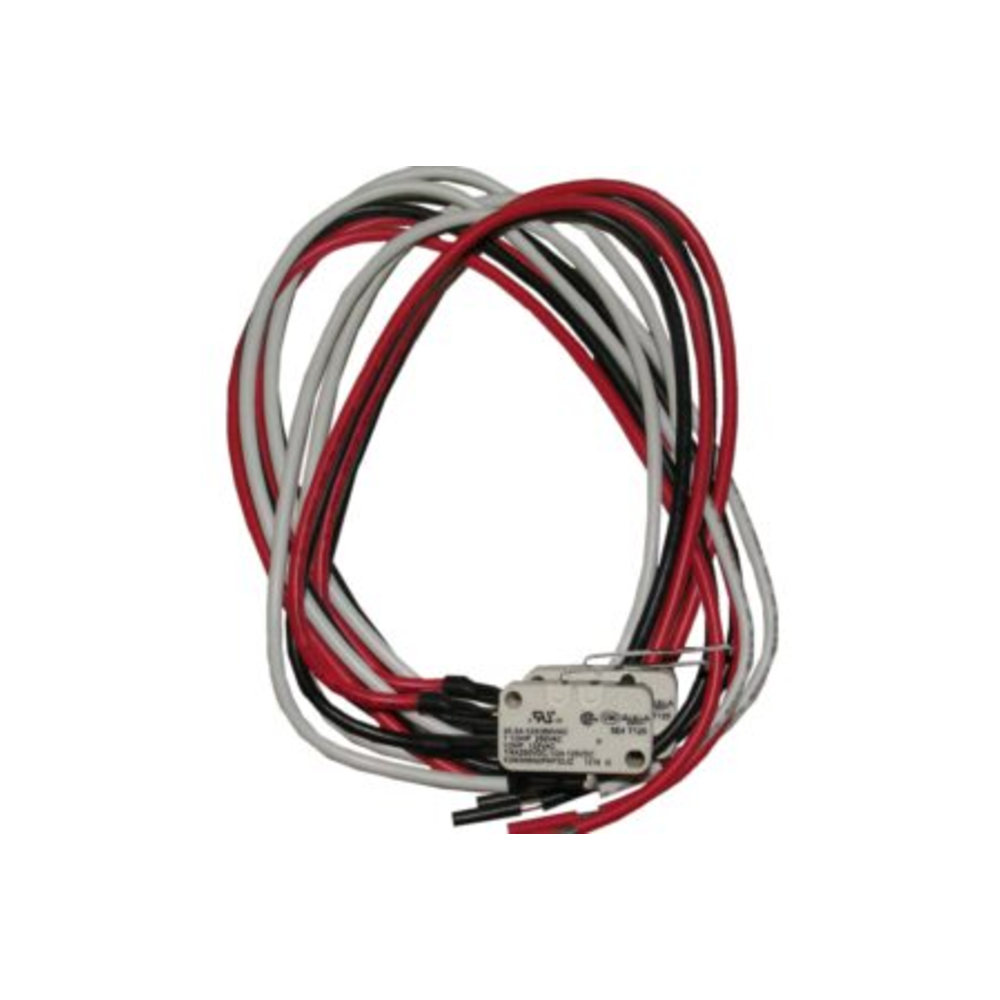

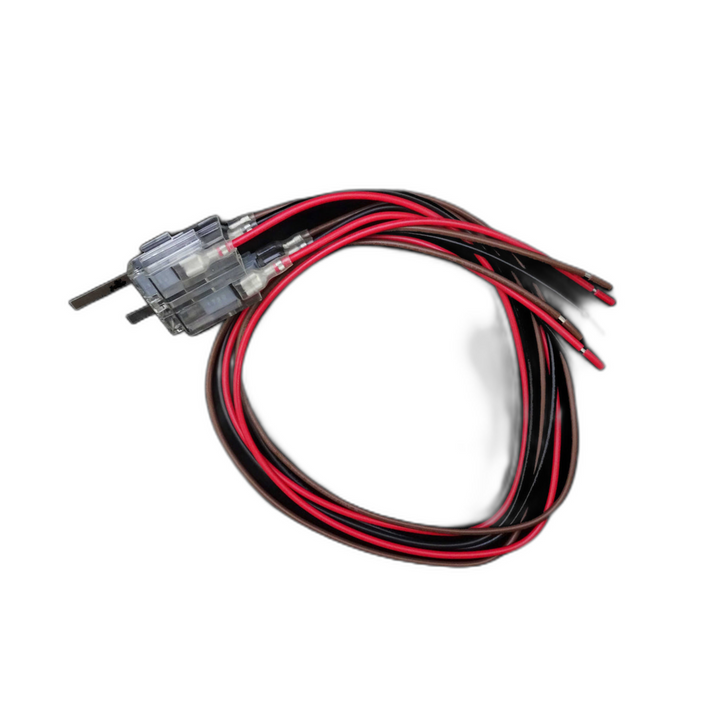

The Ansul Micro Switch DPDT (Part No. 423879) is a critical electrical component designed for integration within the Ansul R-102 Restaurant Fire Suppression System and the Piranha Dual Agent System. As a "Double Pole, Double Throw" (DPDT) switch, this device acts as the primary communication link between the mechanical actuation of the fire system and the electrical infrastructure of a commercial kitchen.

When a fire is detected and the Ansul system is triggered, the micro switch is mechanically toggled. This allows the system to perform simultaneous life-safety functions, such as shutting down the power to electric cooking appliances and activating a remote alarm or building management system (BMS). Rated at 21 Amps, this heavy-duty switch is engineered to handle the electrical loads common in industrial kitchens, providing a "failsafe" mechanism that prevents the re-ignition of grease fires by removing the heat source immediately.

Understanding DPDT: Why Double Pole, Double Throw?

In the world of electrical fire safety, the "Double Pole, Double Throw" configuration is the gold standard for versatility. While a standard SPDT (Single Pole) switch can only control one action, the Ansul 423879 provides two independent sets of contacts operated by a single actuator.

• Dual Circuit Control: Because it has two poles, you can control two entirely separate circuits. For example, Pole 1 can be wired to the kitchen exhaust fan, while Pole 2 is wired to the building's main fire alarm panel.
• Double Throw Flexibility: Each pole has two positions (Normally Open and Normally Closed). This allows the switch to simultaneously "turn off" one device (like a fryer) while "turning on" another (like an emergency strobe light).
• High Amperage Rating: At 21 Amps, this switch is robust enough to bypass the need for intermediate relays in many wiring configurations, simplifying the installation and reducing potential points of failure.

The versatility of the DPDT micro switch makes it the "brain" of the kitchen's emergency response. Common applications include:

• Appliance Power Shutdown: Disconnecting power to deep fryers, griddles, and ranges to remove the energy source feeding the fire.
• Exhaust Fan Interlock: Depending on local codes, the switch can be wired to keep fans on (to clear smoke) or turn them off (to prevent oxygen from feeding the fire).
• Make-Up Air Shutdown: Closing off the fresh air supply to the kitchen to help "smother" the fire area with suppression agent.
• Remote Monitoring: Sending a signal to a 24/7 monitoring station or the building's central alarm system.
• Gas Valve Solenoids: Working in tandem with an electric gas valve to shut off the fuel supply to the entire cooking line.

Installation & Maintenance Best Practices

For maximum reliability, the Ansul 423879 should be installed inside the Ansul AUTOMAN Release or a dedicated electrical junction box.

• Wiring Harness: Ensure that all wiring is high-temperature rated and contained within liquid-tight conduit to prevent grease and moisture from compromising the electrical contacts.
• Visual Inspection: During monthly owner inspections, ensure the mounting screws for the micro switch are tight and that there is no visible corrosion on the terminals.
• Semi-Annual Testing: A certified fire suppression technician must manually trip the system (without discharging the agent) to verify that the micro switch successfully cuts power to the intended appliances and activates any connected alarms.
• Replacement: If the switch body is cracked or if the "click" of the snap-action actuator becomes sluggish, the unit should be replaced immediately with a genuine Ansul OEM part to maintain the system's UL listing.

The Ansul Micro Switch 423879 is not just an accessory; it is often a requirement for a kitchen to meet local fire codes and insurance mandates.

Key Compliance Features:

• UL and ULC Listed: This switch is tested under the scrutiny of Underwriters Laboratories to ensure it functions reliably under the extreme conditions of a fire event.
• NFPA 96 & NFPA 17A Compliance: National fire codes require that all electrical sources of heat under a hood must be shut down upon system actuation. The 423879 is the specified tool to achieve this mandatory interlock.
• OSHA Workplace Safety: By automating the shutdown of gas and electric appliances, this switch reduces the risk to kitchen staff and first responders during an emergency.

What is the difference between this and the 423878 switch?
The 423878 is an SPDT (Single Pole) switch. The 423879 is the DPDT version, which allows you to control twice as many circuits with a single device. If your kitchen has both an alarm system and multiple electric appliances, the 423879 is usually required.

Can I use this switch for a non-Ansul system?
While it is an electrical component, the 423879 is specifically designed to fit the mounting brackets within Ansul control heads. Using it in other systems (like Amerex or Buckeye) may require custom modifications that could void the system's fire certification.

Does this switch handle both AC and DC current?
Yes, but you must stay within the rated limits. For most commercial kitchens, it is used with 120V or 240V AC power. Always consult a licensed electrician for specific wiring diagrams.
